PODS, SERVICES & DEPLOYMENTS

PODS

Pod is a wrapper to container and it is the smallest deployable unit in Kubernetes.

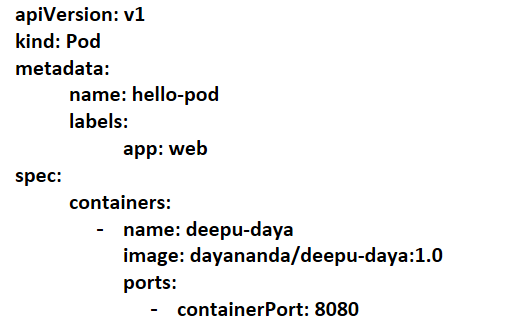

pod yaml configuration













Pod Useful Commands:

$kubectl version --short
Client Version: v1.22.4
Server Version: v1.22.4

$kubectl get svc
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.96.0.1                    <none>           443/TCP   5d20h

$kubectl get nodes
NAME             STATUS   ROLES                       AGE     VERSION
docker-desktop   Ready    control-plane,master   3d23h   v1.22.4

$kubectl cluster-info
Kubernetes control plane is running at https://kubernetes.docker.internal:6443
CoreDNS is running at https://kubernetes.docker.internal:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.

$kubectl cluster-info dump


$kubectl apply -f pod.yml
pod/hello-pod created


$kubectl get pods
NAME        READY   STATUS    RESTARTS   AGE
hello-pod       1/1         Running             0          9m26s

$kubectl get pods  --watch
NAME        READY   STATUS    RESTARTS   AGE
hello-pod       1/1          Running           0          9m31s

$kubectl get pods  -o wide
NAME        READY   STATUS    RESTARTS   AGE           IP               NODE                NOMINATED NODE   READINESS GATES
hello-pod   1/1     Running              0          11m   10.1.0.10     docker-desktop        <none>                          <none>

$kubectl describe pod hello-pod
Name:         hello-pod
Namespace:    default
Priority:     0
Node:         docker-desktop/192.168.65.4
Start Time:   Wed, 22 Dec 2021 18:41:10 +0530
Labels:       app=web
Annotations:  <none>
Status:       Running
IP:           10.1.0.10
IPs:
  IP:  10.1.0.10
Containers:
  deepu-daya:
    Container ID:   docker://2bd3de09d663b358ce5e220cbad225ed0944de08497b5eb11319a917115bfbad
    Image:          dayananda/deepu-daya:1.0
    Image ID:       docker-pullable://dayananda/deepu-daya@sha256:d7eb67f2c1a4484d72752c1f126bfb72a940af95e25396da718644cbb5b71cf1
    Port:           8080/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Wed, 22 Dec 2021 18:41:11 +0530
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-9mj7g (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  kube-api-access-9mj7g:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   BestEffort
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age   From               Message
  ----    ------     ----  ----               -------
  Normal  Scheduled  13m   default-scheduler  Successfully assigned default/hello-pod to docker-desktop
  Normal  Pulled     13m   kubelet            Container image "dayananda/deepu-daya:1.0" already present on machine
  Normal  Created    13m   kubelet            Created container deepu-daya
  Normal  Started    13m   kubelet            Started container deepu-daya


$kubectl delete -f pod.yml
pod "hello-pod" deleted

$kubectl delete pod/<pod> or $kubectl delete pod <pod>


$kubectl get pod hello-pod --watch
NAME          READY    STATUS     RESTARTS   AGE
hello-pod      1/1        Running             0          91m

$kubectl get pods -A --watch
NAMESPACE         NAME                                                                   READY   STATUS      RESTARTS          AGE
default                 hello-pod                                                                  1/1       Running           0                 92m
kube-system       coredns-78fcd69978-9q8gq                                  1/1         Running   1 (3d ago)        5d17h
kube-system       coredns-78fcd69978-kx7pm                                 1/1     Running   1 (3d ago)        5d17h
kube-system       etcd-docker-desktop                                              1/1     Running   1 (3d ago)        5d17h
kube-system       kube-apiserver-docker-desktop                           1/1     Running   1 (3d ago)        5d17h
kube-system       kube-controller-manager-docker-desktop         1/1     Running   1 (3d ago)        5d17h
kube-system       kube-proxy-l4z7f                                                     1/1     Running   1 (3d ago)        5d17h
kube-system       kube-scheduler-docker-desktop                          1/1     Running   17 (2m57s ago)    5d17h
kube-system       storage-provisioner                                                1/1     Running   33 (2m57s ago)    5d17h
kube-system       vpnkit-controller                                                     1/1     Running   141 (2m49s ago)   5d17h


Create a pod from an image:
$Kubectl run hello-pod2  --image=dayananda/deepu-daya:1.0
pod/hello-pod2 created

Executing commands inside a pod:
$kubectl exec -it hello-pod2 -- ls
bin   dev  home  lib64  mnt  proc  run   src  sys  usr
boot  etc  lib   media  opt  root  sbin  srv  tmp  var

Interactive way
$kubectl run -i --tty nginx --image=nginx -- sh

Dry-run : without creating a pod
$kubectl run hello-po3 --image=nginx --dry-run
W1223 09:33:44.902118   27860 helpers.go:555] --dry-run is deprecated and can be replaced with --dry-run=client.
pod/hello-po3 created (dry run)

Patch a pod:
Kubectl patch pod <pod> -p '<patch>'

Example:
Kubectl patch pod <pod> -p '{"spec":{"containers":[{"name" : "patch-pod", "image" : "nginx"}]}}'



Get pod logs:
$kubectl logs <pod> or kubectl logs -f <pod>


Get containers inside a pod:
$kubectl get pods hello-pod -o jsonpath='{.spec.containers[*].name}'
'deepu-daya'

Kubectl top pod <pod-name>

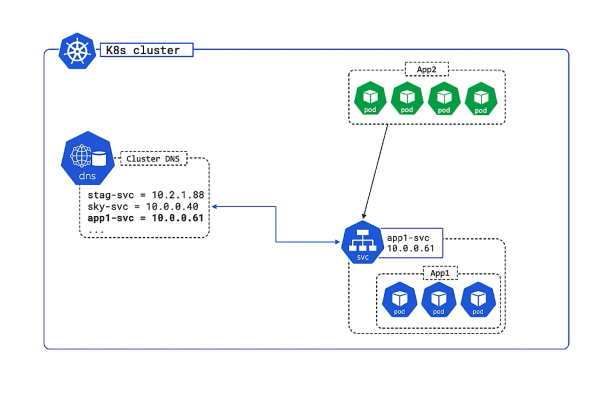

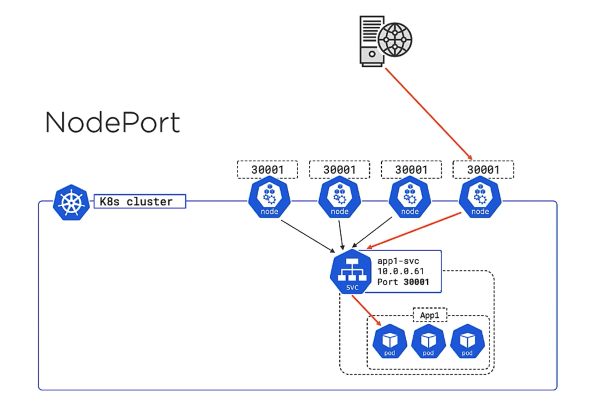

Services:

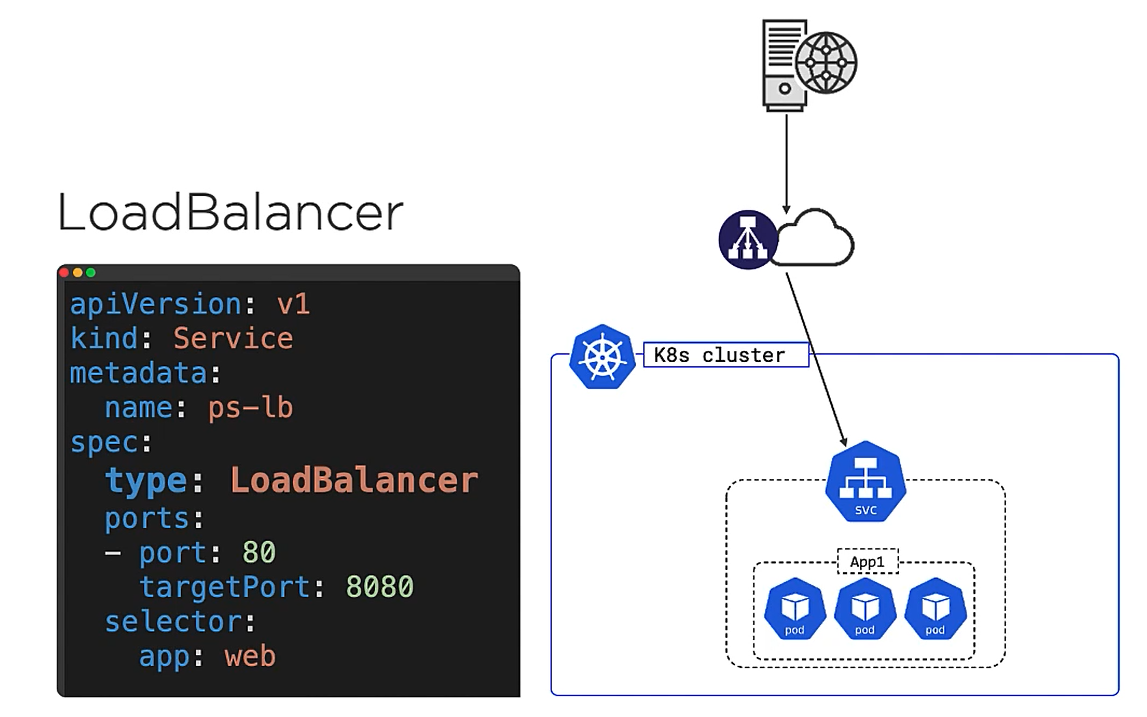

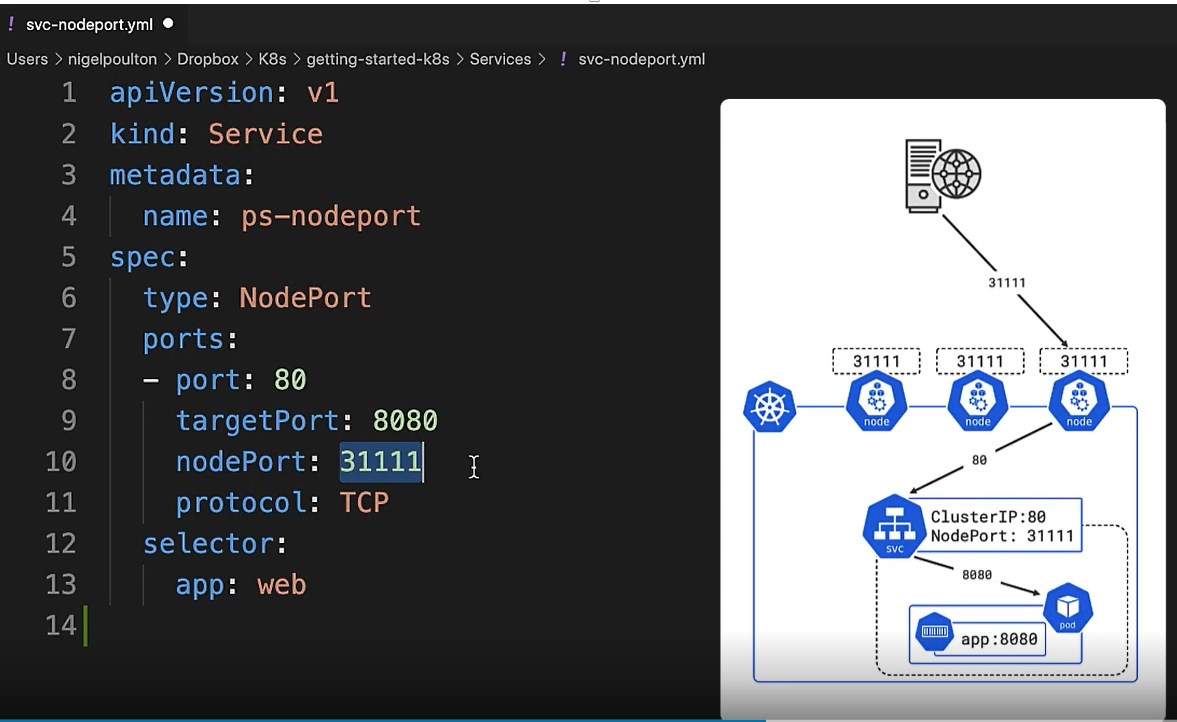

Service spec configuration:





































































$kubectl expose pod hello-pod  --name=hello-svc --target-port=8080 --type=NodePort
service/hello-svc exposed

$kubectl get svc
NAME              TYPE             CLUSTER-IP     EXTERNAL-IP   PORT(S)                    AGE
hello-svc        NodePort      10.111.5.253   <none>            8080:30760/TCP   73s
kubernetes   ClusterIP        10.96.0.1      <none>               443/TCP                  5d20h

$kubectl describe service ps-nodeport
Name:                     ps-nodeport
Namespace:                default
Labels:                   <none>
Annotations:              <none>
Selector:                 app=web
Type:                          NodePort
IP Family Policy:         SingleStack
IP Families:                  IPv4
IP:                                10.107.77.195
IPs:                               10.107.77.195
LoadBalancer Ingress: localhost
Port:                                 <unset>  80/TCP
TargetPort:               8080/TCP
NodePort:                 <unset>  31111/TCP
Endpoints:                10.1.0.11:8080
Session Affinity:         None
External Traffic Policy:  Cluster
Events:                   <none>


Kubectl delete service <service_name>

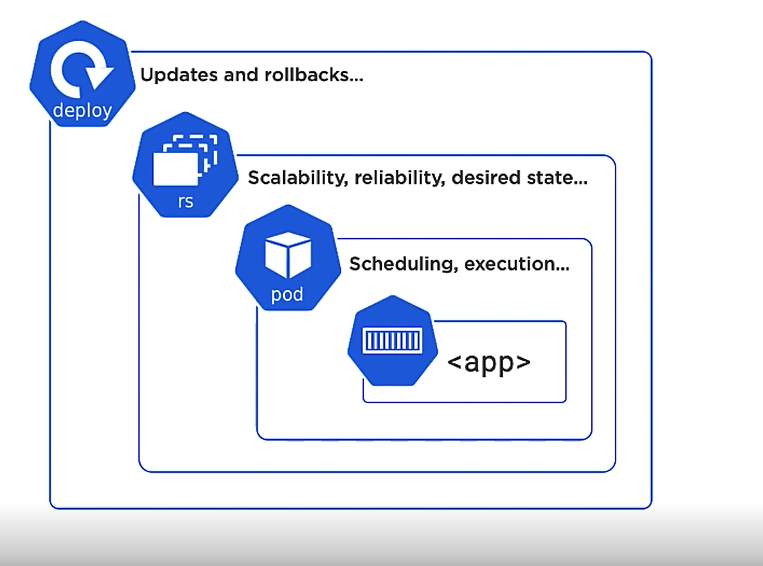

Deployments:


















kubectl get deploy
NAME         READY   UP-TO-DATE   AVAILABLE   AGE
web-deploy   0/5     5            0           14s


kubectl get rs
NAME                    DESIRED   CURRENT   READY   AGE
web-deploy-566bd8fc84   5         5         4       36s


kubectl get pod
NAME                          READY   STATUS    RESTARTS   AGE
web-deploy-566bd8fc84-4pncz   1/1     Running   0          55s
web-deploy-566bd8fc84-8zln2   1/1     Running   0          55s
web-deploy-566bd8fc84-967r8   1/1     Running   0          55s
web-deploy-566bd8fc84-cqz82   1/1     Running   0          55s
web-deploy-566bd8fc84-zvxzl   1/1     Running   0          55s


kubectl get pods --show-labels
NAME                          READY   STATUS    RESTARTS   AGE     LABELS
web-deploy-566bd8fc84-4pncz   1/1     Running   0          3m21s   app=web,pod-template-hash=566bd8fc84
web-deploy-566bd8fc84-8zln2   1/1     Running   0          3m21s   app=web,pod-template-hash=566bd8fc84
web-deploy-566bd8fc84-967r8   1/1     Running   0          3m21s   app=web,pod-template-hash=566bd8fc84
web-deploy-566bd8fc84-cqz82   1/1     Running   0          3m21s   app=web,pod-template-hash=566bd8fc84
web-deploy-566bd8fc84-zvxzl   1/1     Running   0          3m21s   app=web,pod-template-hash=566bd8fc84


kubectl get ep
NAME         ENDPOINTS           AGE
kubernetes   192.168.65.4:6443   6d17h


kubectl get ep
NAME         ENDPOINTS           AGE
kubernetes   192.168.65.4:6443   6d17h

kubectl describe ep
Name:         kubernetes
Namespace:    default
Labels:       endpointslice.kubernetes.io/skip-mirror=true
Annotations:  <none>
Subsets:
  Addresses:          192.168.65.4
  NotReadyAddresses:  <none>
  Ports:
    Name   Port  Protocol
    ----   ----  --------
    https  6443  TCP

Events:  <none>


kubectl get pods
NAME                          READY   STATUS    RESTARTS   AGE
web-deploy-566bd8fc84-4pncz   1/1     Running   0          7m26s
web-deploy-566bd8fc84-8zln2   1/1     Running   0          7m26s
web-deploy-566bd8fc84-967r8   1/1     Running   0          7m26s
web-deploy-566bd8fc84-cqz82   1/1     Running   0          7m26s
web-deploy-566bd8fc84-zvxzl   1/1     Running   0          7m26s

kubectl delete pod web-deploy-566bd8fc84-4pncz
pod "web-deploy-566bd8fc84-4pncz" deleted

kubectl get pods
NAME                          READY   STATUS              RESTARTS   AGE
web-deploy-566bd8fc84-85l2j   0/1     ContainerCreating   0          5s
web-deploy-566bd8fc84-8zln2   1/1     Running             0          7m41s
web-deploy-566bd8fc84-967r8   1/1     Running             0          7m41s
web-deploy-566bd8fc84-cqz82   1/1     Running             0          7m41s
web-deploy-566bd8fc84-zvxzl   1/1     Running             0          7m41s


Kubectl rollout status deploy web-deploy


Happy Learning😀
